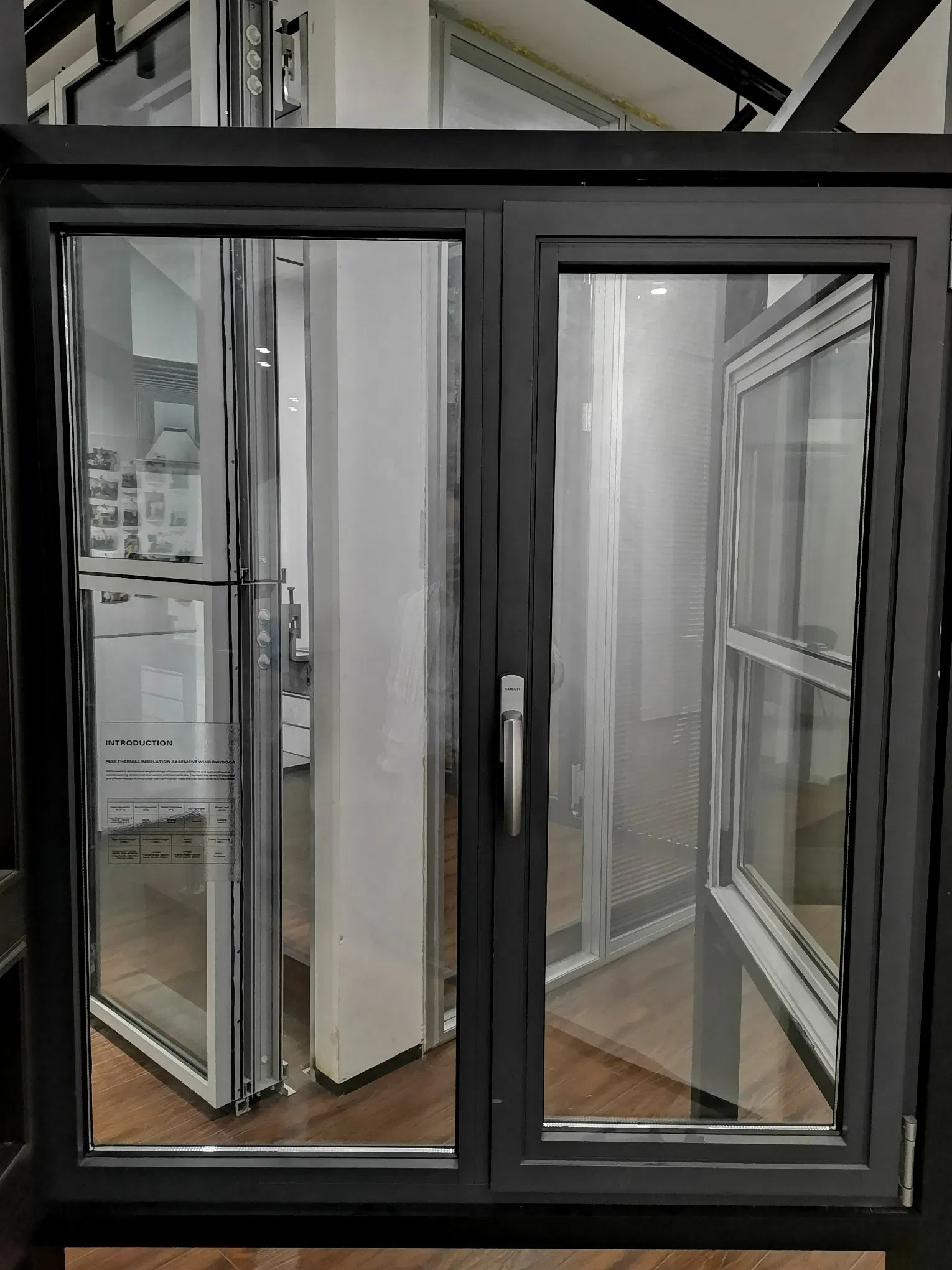

HW49/100 Aluminium Casement/Awning Window with Steel Fly Screen
Versatile Systems: Outside/inside casement system with multi-opening ways including awning and tilt-turn.
Security Focus: Inward side glass beads solve security concerns for low buildings and safety for high-rise installations.
Excellent Drainage: Advanced drainage design guarantees superior water tightness.
Cost-Effective: Two different frame thicknesses available to meet specific customer requirements.

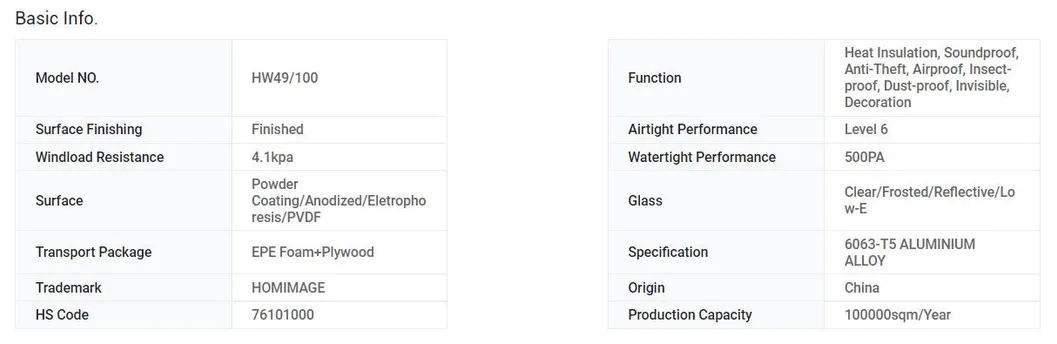

Performance Ratings
Performance Category
Specifications / Level
Heat Preservation (W/m2.k)
2.3 - 2.8 (Level 5/6)
Sound Insulation
35DB (Level 4)
Watertight Performance
500PA (Level 5)
Airtight Performance
Level 6
Wind Load Resistance
4.1KPA (Level 7)
Technical Parameters
Feature
HCW49 Series
HCW100 Series
Sash Range
Width: 300-800mm | Height: 300-1800mm
Frame Width
51mm
49mm
Frame Depth
49mm
100mm
Glass Options
SGU: 4-10mm | DGU: 14-35mm
Frequently Asked Questions
Q1: What opening styles does the HW49/100 series support?

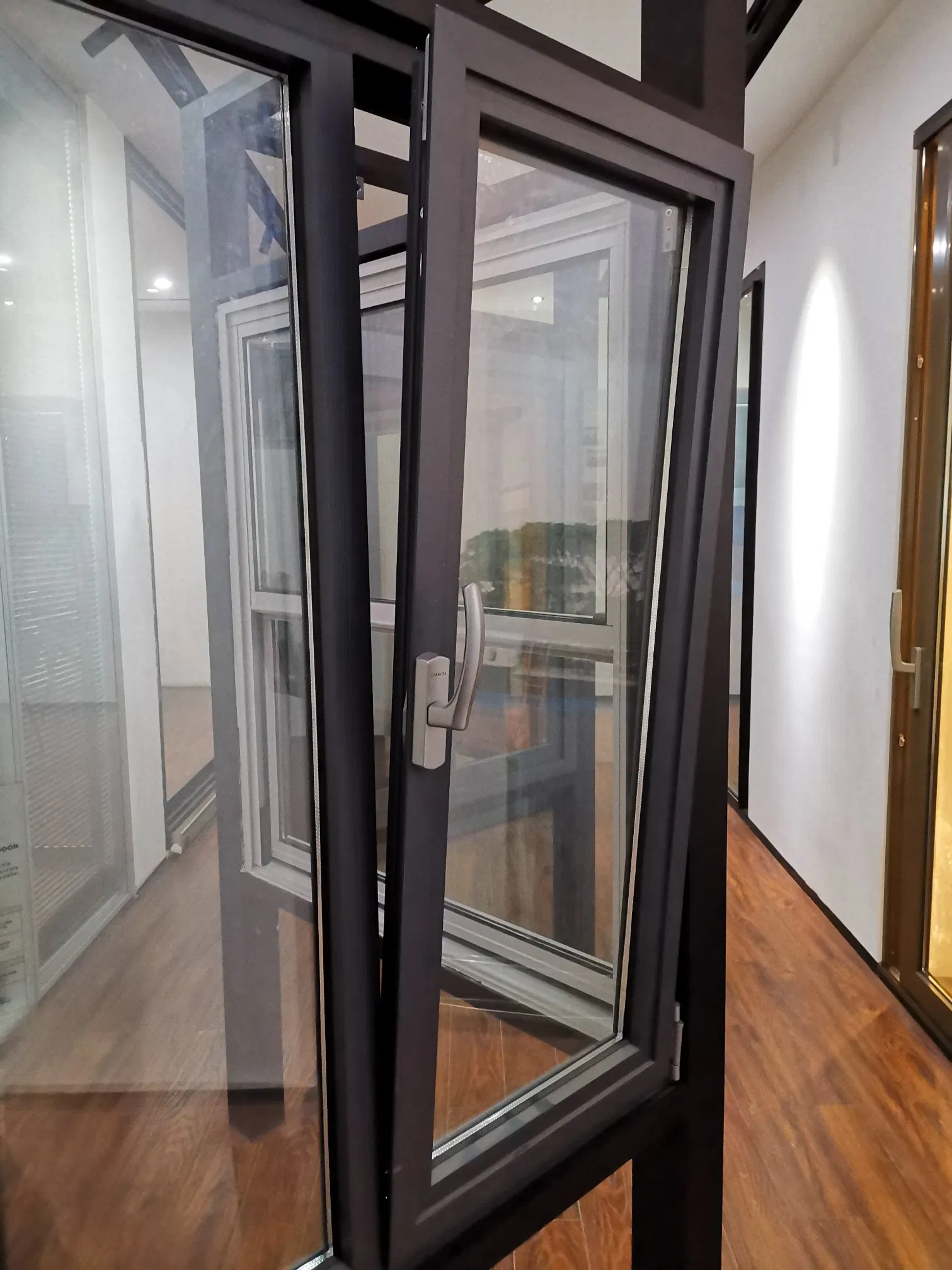

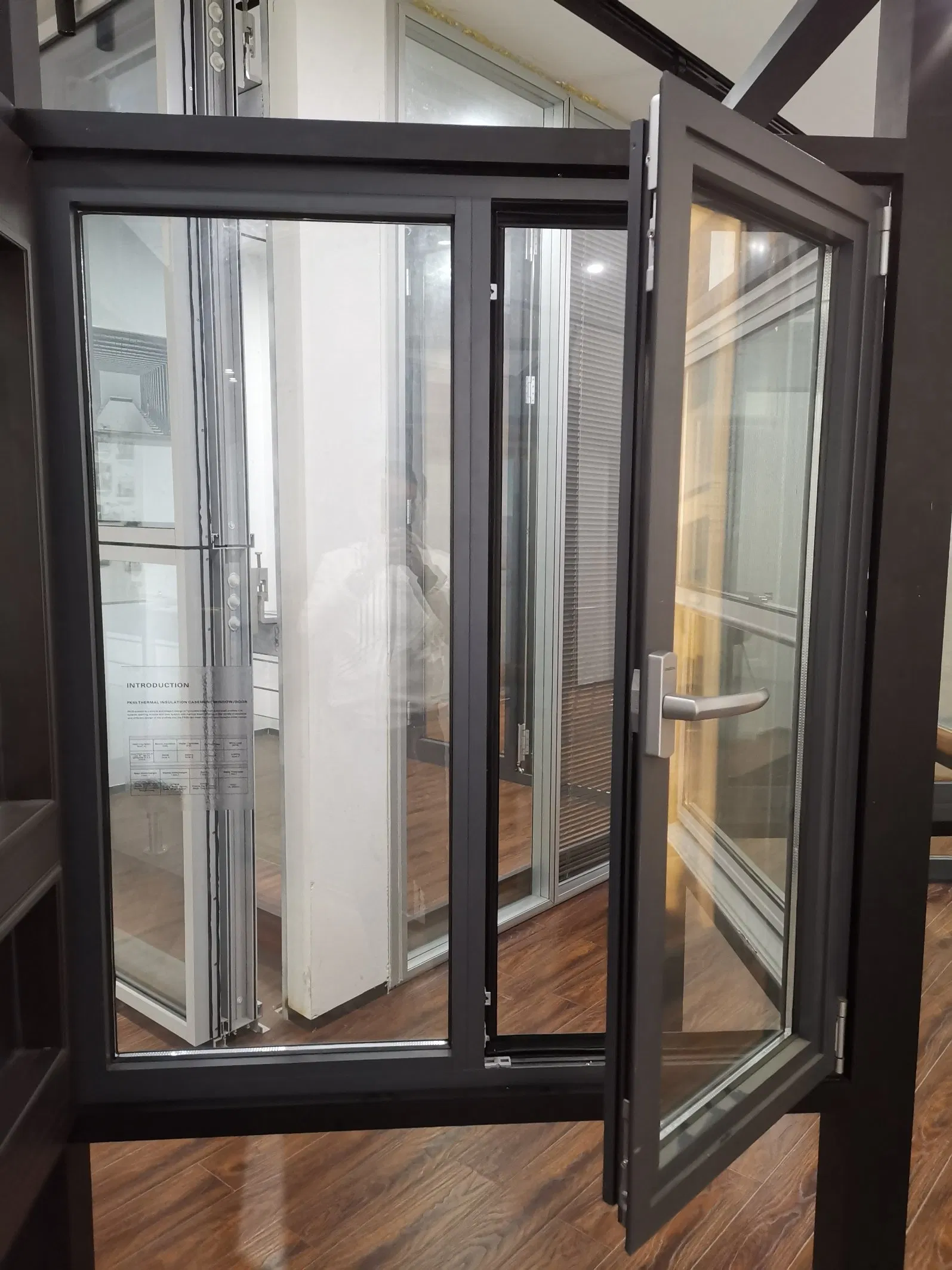

A: The system supports multiple opening ways, including inward and outward casement, awning (top-hung), and tilt-turn configurations.
Q2: Is this window system safe for high-rise buildings?
A: Yes, it features inward side glass beads which specifically address safety installation requirements for high-rise buildings and security for lower floors.
Q3: What is the maximum weight capacity for each window fan?
A: Each window fan can support a heavy load of up to 45kgs.
Q4: What are the glass thickness options available?
A: The system supports Single Glazed Units (SGU) from 4-10mm and Double Glazed Units (DGU) from 14-35mm.
Q5: How does the window perform against wind and water?
A: It reaches Level 5 for water tightness (500PA) and Level 7 for wind load resistance (4.1KPA), ensuring excellent durability in harsh weather.
Q6: What materials are used for the frame and screen?
A: The frames are constructed from high-quality Aluminum Alloy, and the screen netting is made of durable Fiberglass or Steel Fly Screen options.
