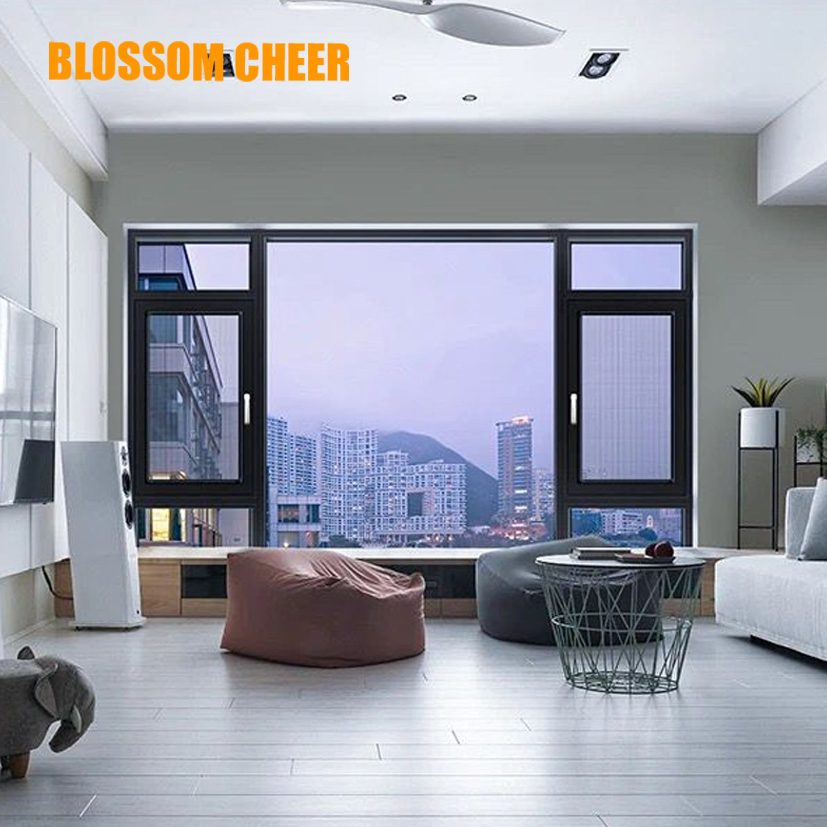

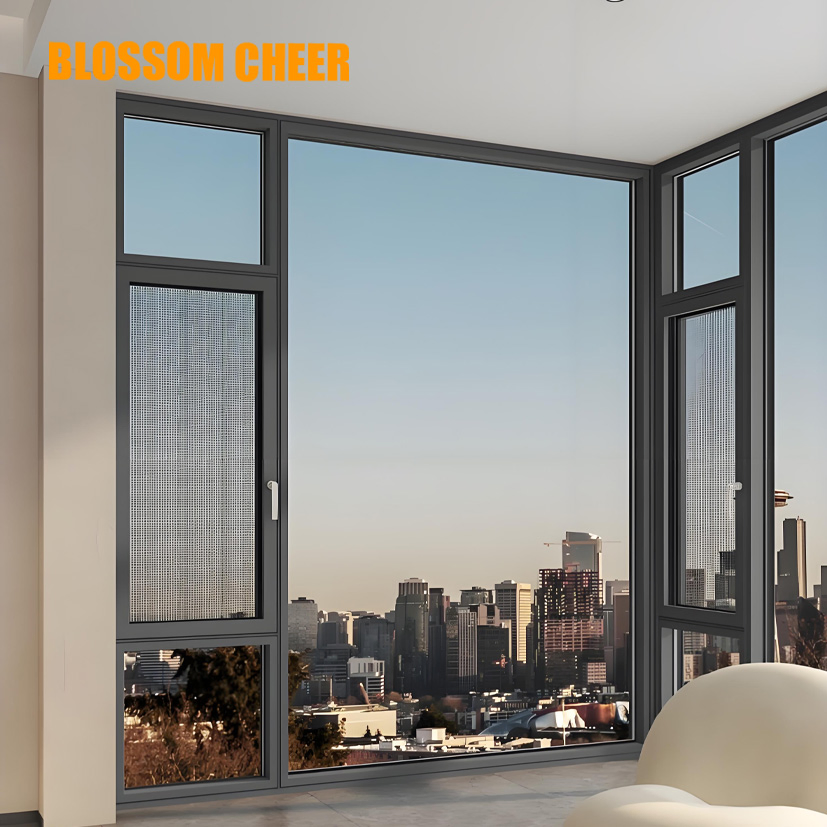

Angulo Window
Angulo Window
| Model NO. | BC2415 | Material | Aluminum Alloy |
| Open Style | Sliding | Frame Material | Aluminum Alloy |
| Screen Netting | Nylon | Style | Modern |
| Function | Heat Insulation, Soundproof, Anti-Theft, Airproof, Insect-proof, Dust-proof, Decoration | ||
| Surface Finishing | Powder Coating | Security Rating | A |
| Product Type | Thermal Break Casement Window | Frame Design | Ultra Slim Frame Minimalist Design |
| Glass Specs | Automotive Grade Triple Glazed Tempered Glass | Insulation Tech | Argon Filled & Multi Cavity Structure |
| Hardware System | Premium German Hardware with Anti-Fall System | Sealing System | Triple Sealing Weatherproof System |

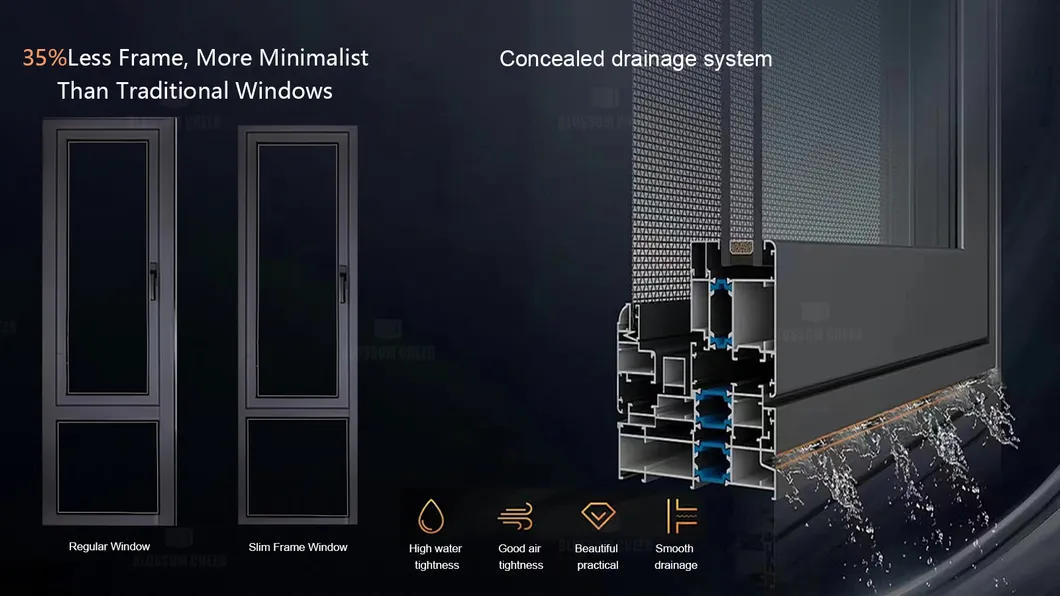

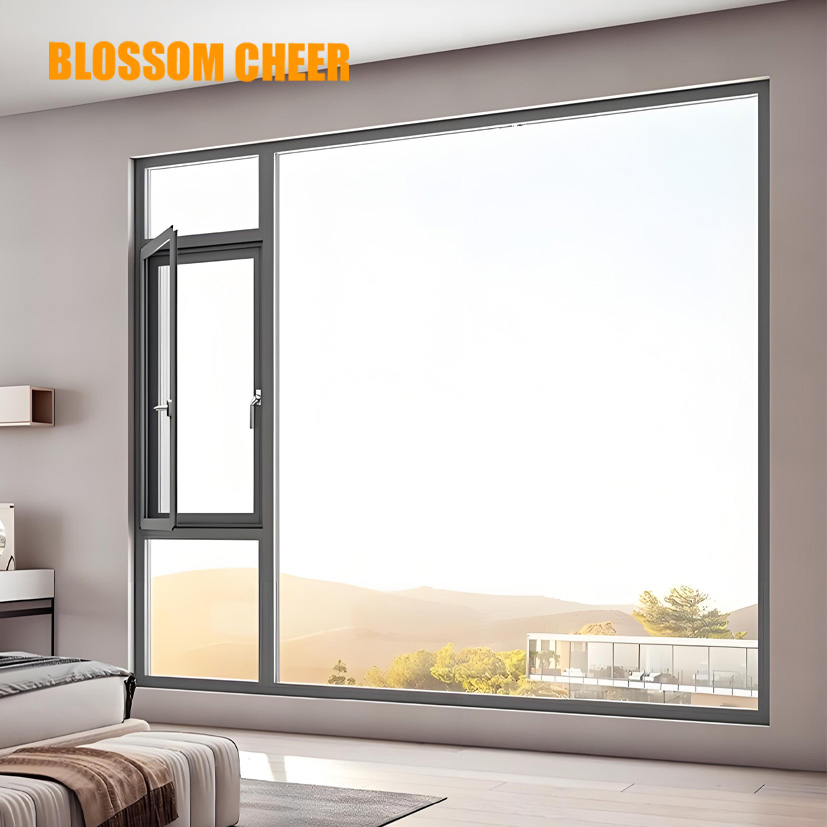

110 thermally insulated casement window, 1.4mm thick (options for 2.0mm available), concealed drainage system. Features no deformation, heat insulation, and noise reduction.

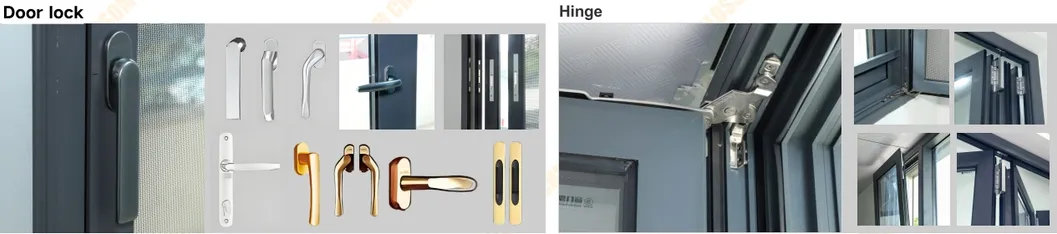

Hidden opening and closing hinges (top + bottom). Strong, sturdy, and wind-resistant to prevent accidental closing.
Ergonomic design for easy operation, high precision fit, and comfortable tactile feel.

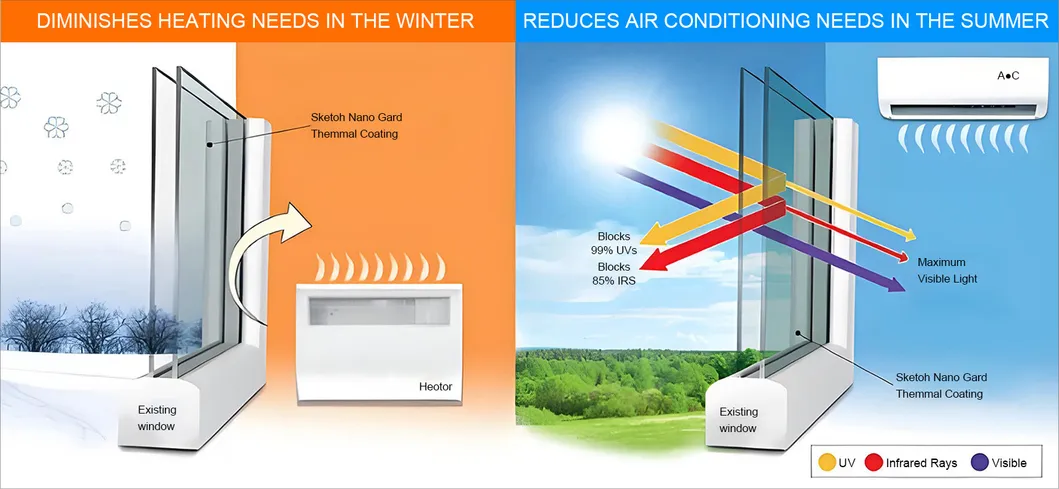

3C certified tempered glass. Options include clear, Low-E, and other special glass types for specific needs.

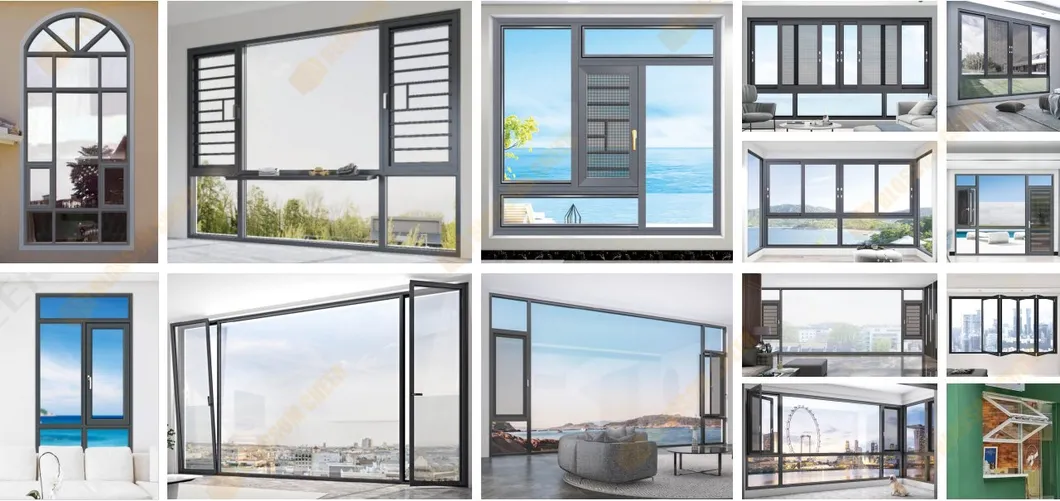

Customizable Size: Opening Panel width >1000mm, Height >2100mm.

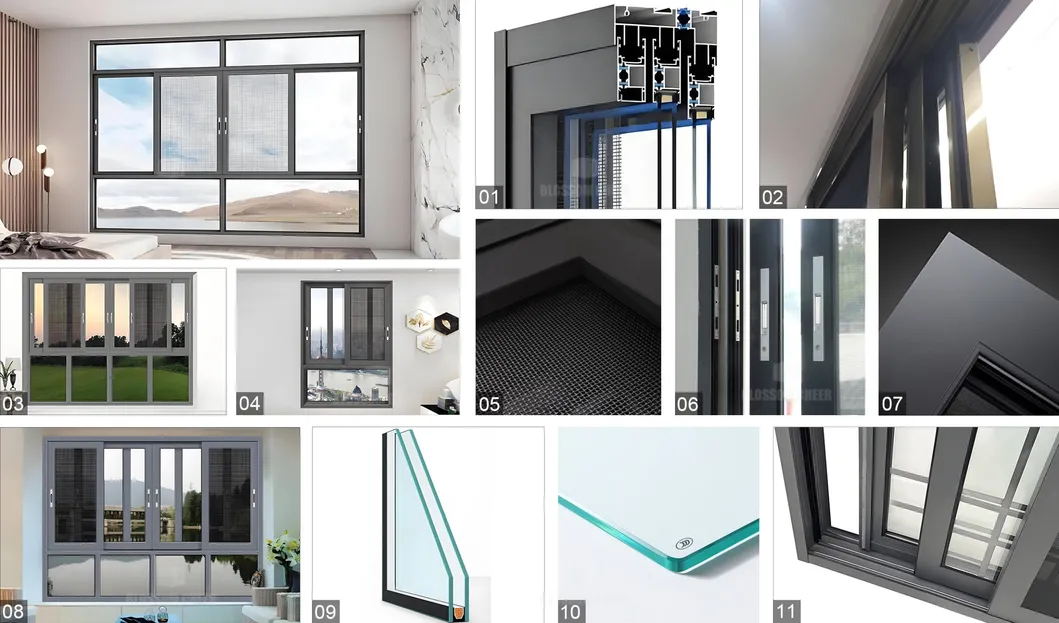

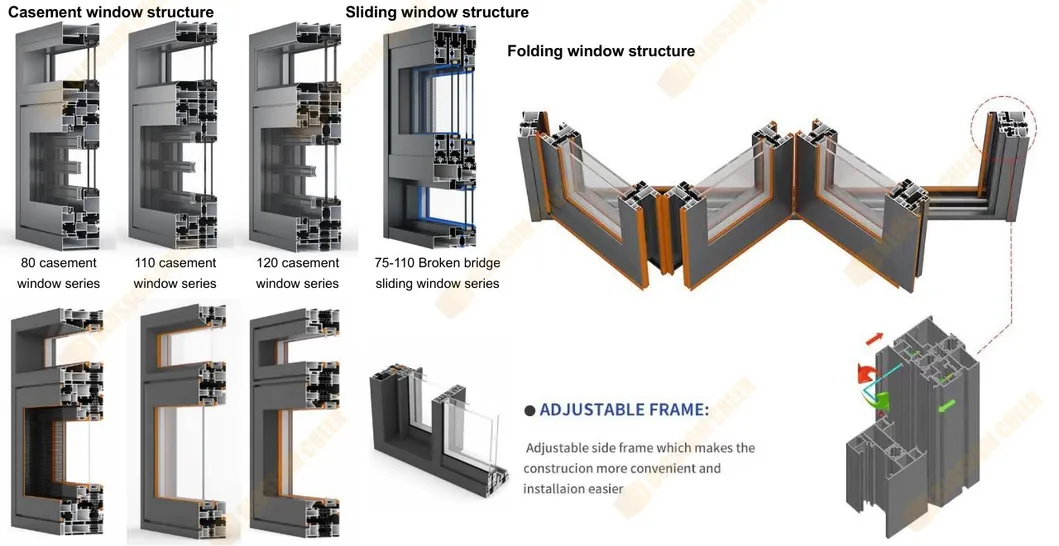

| Structure Components | Performance Ratings |
|---|---|
|
01 Non-hidden frame 02 Center column 03 Sash 04 Screen window 05 Outer frame |
1. Insulation: Level 6, 2.5≤K<3.0W(m2*K) 2. Wind Pressure: Level 4, 2500≤P<3000Pa 3. Watertight: Level 5, 500Pa≤AP<700Pa 4. Airtight: Level 8, q1≤0.5m*(m*h) 5. Sound Insulation: Level 2, 25dB ≤Rm+Ctr<30dB |

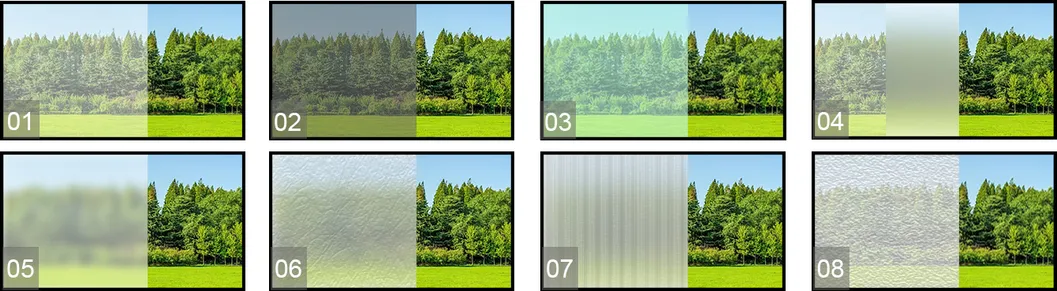

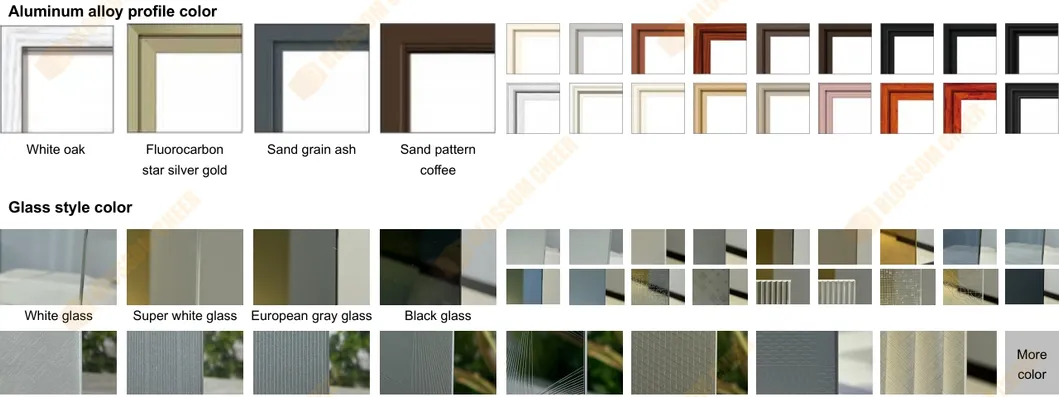

01 Transparent; 02 Gray; 03 Blue-green; 04 Dimming; 05 Tempered; 06 Frosted; 07 Changhong; 08 Frosted Glass.

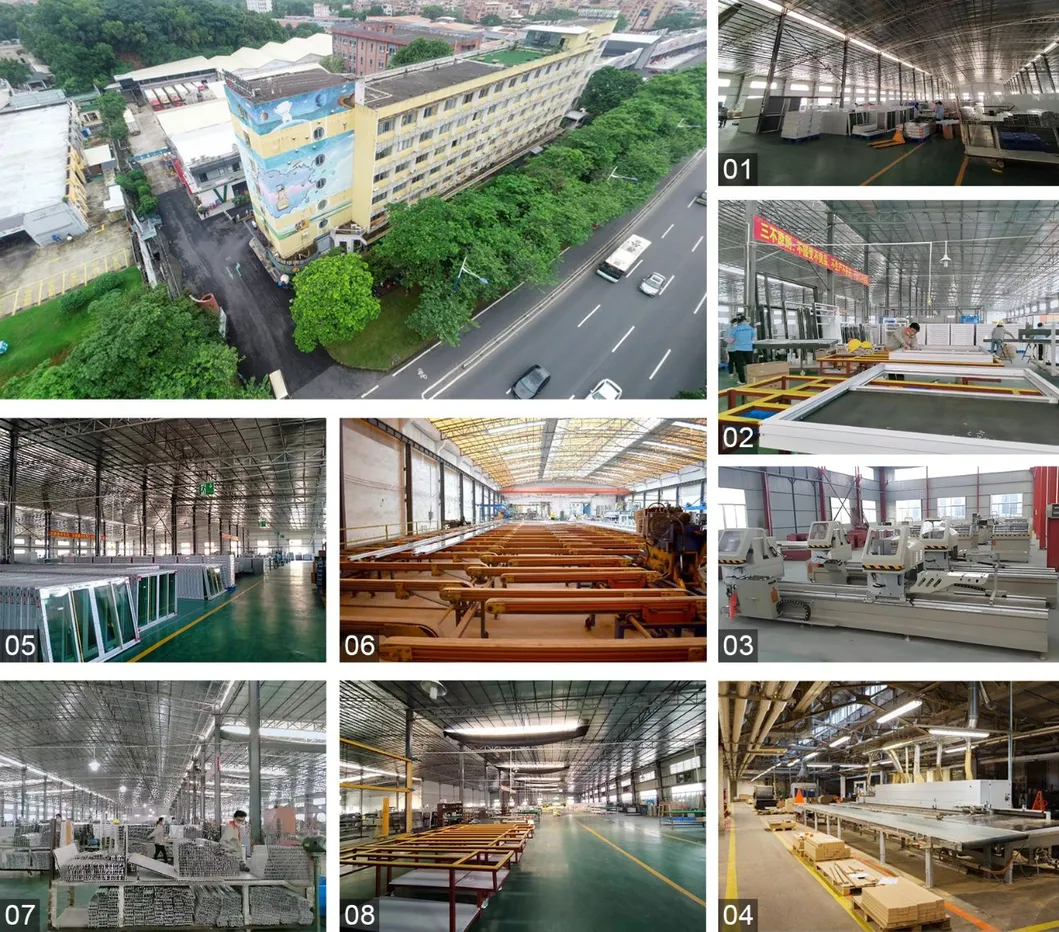

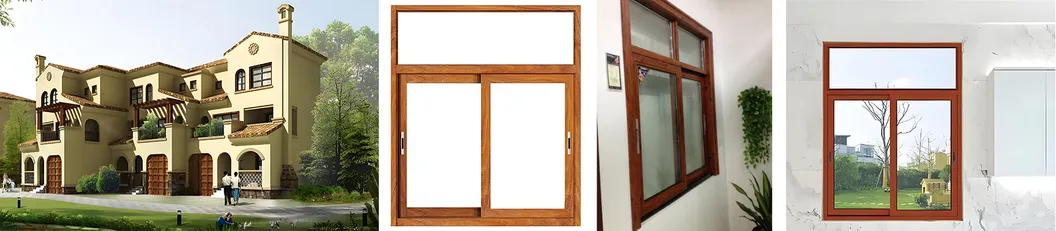

Over 14 years of export experience with successful projects worldwide, focusing on comfort, user-friendliness, safety, and intelligence.
From production and shipment to installation guidelines, we handle everything on one platform.
Optional pre-installation, video guides, and programs to save you time and labor costs.
Multi-link testing and inspection reports ensure every product meets high standards.
Professional CAD and BIM drawings provided to ensure exact requirements are met before production.
