Basic Specifications
Frame Material
Aluminum Alloy
Screen Netting
Stainless Steel
Opening Pattern
Horizontal
Surface Finishing
Finished / Powder Coating
Production Capacity
5000sqm/Month
Product Overview

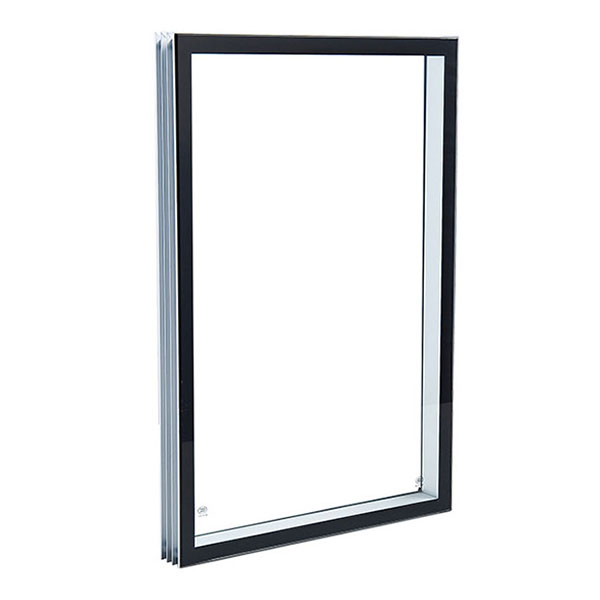

The commercial Black Large Fixed Double Pane Picture Window is a high-quality window designed for commercial buildings. It features a large fixed pane of glass that provides an unobstructed view of the outdoors, making it ideal for areas where natural light is desirable, such as lobbies, conference rooms, and retail spaces.
The double pane design provides superior energy efficiency and helps to reduce noise transmission, making it an excellent choice for buildings located in busy urban areas. The black frame is sleek and modern, providing a stylish and contemporary look that complements any building's design.
Technical Specifications
| Category |
Details |
| Profiles |
6063-T5 high quality thermal break or non-thermal break aluminium profiles |
| Glass Options |
Single tempered (5mm-12mm); Double tempered (5+12A+5mm, etc.); Laminated (6.38mm-11.52mm); Low-E, Tinted, Reflective, Fireproof, Bulletproof |
| Hardware |
Chinese, Australian, or German premium brands |
| Accessories |
Stainless steel screws, EPDM rubber gasket for superior sealing |
| Mesh |
Fiberglass Flyscreen, Retractable Flyscreen, or Stainless Steel Security Mesh |
| Finishing |
Powder coating (6-20yr warranty), Anodized, Electrophoresis, Wood Grain, PVDF |
Glass Performance Data
| Glass Composition |
China K Value |
Europe K Value |
U.S.A U Value (Summer) |
U.S.A U Value (Winter) |
| 6mm Clear |
5.44 |
5.02 |
5.74 |
6.17 |
| 6+12A+6 |
2.258 |
2.51 |
3.09 |
2.75 |
| 6 (Low-e)+12A+6 |
1.57 |
1.49 |
1.7 |
1.66 |
Key Advantages
- Superior Lighting: The biggest advantage of fixed windows is providing exceptional natural illumination.
- Thermal Comfort: Perfect for capturing the warmth of the sun while maintaining internal temperatures.
- High Sealing Performance: Engineered for excellent air-tightness and thermal insulation.
- Versatile Application: Frequently utilized for skylights and large architectural viewing areas.
- Durability: Built with high-quality materials to withstand the rigors of commercial use.
Frequently Asked Questions
What are the primary benefits of the FF002 Fixed Window?
The FF002 model offers exceptional natural lighting, superior sealing performance, and high thermal insulation, making it ideal for both energy efficiency and aesthetic appeal in commercial settings.
What glass options are available for customization?
We offer a wide range of options including single or double tempered glass, laminated glass, Low-E coatings, tinted, reflective, and even specialized fireproof or bulletproof glass.
How does this window contribute to energy efficiency?
The double pane design and optional thermal break aluminum profiles significantly reduce heat transfer and noise transmission, lowering energy costs for the building.
What frame materials and finishes are used?
The frames are constructed from high-quality 6063-T5 aluminum alloy. Available finishes include powder coating (with up to 20 years warranty), anodizing, electrophoresis, and wood grain patterns.
Is this window suitable for high-security commercial areas?
Yes, with a Security Rating of B and options for stainless steel security mesh and laminated or bulletproof glass, it is well-suited for secure commercial applications.
What is the production capacity for these windows?
The production capacity is approximately 5000 square meters per month, ensuring timely delivery for large-scale commercial projects.
