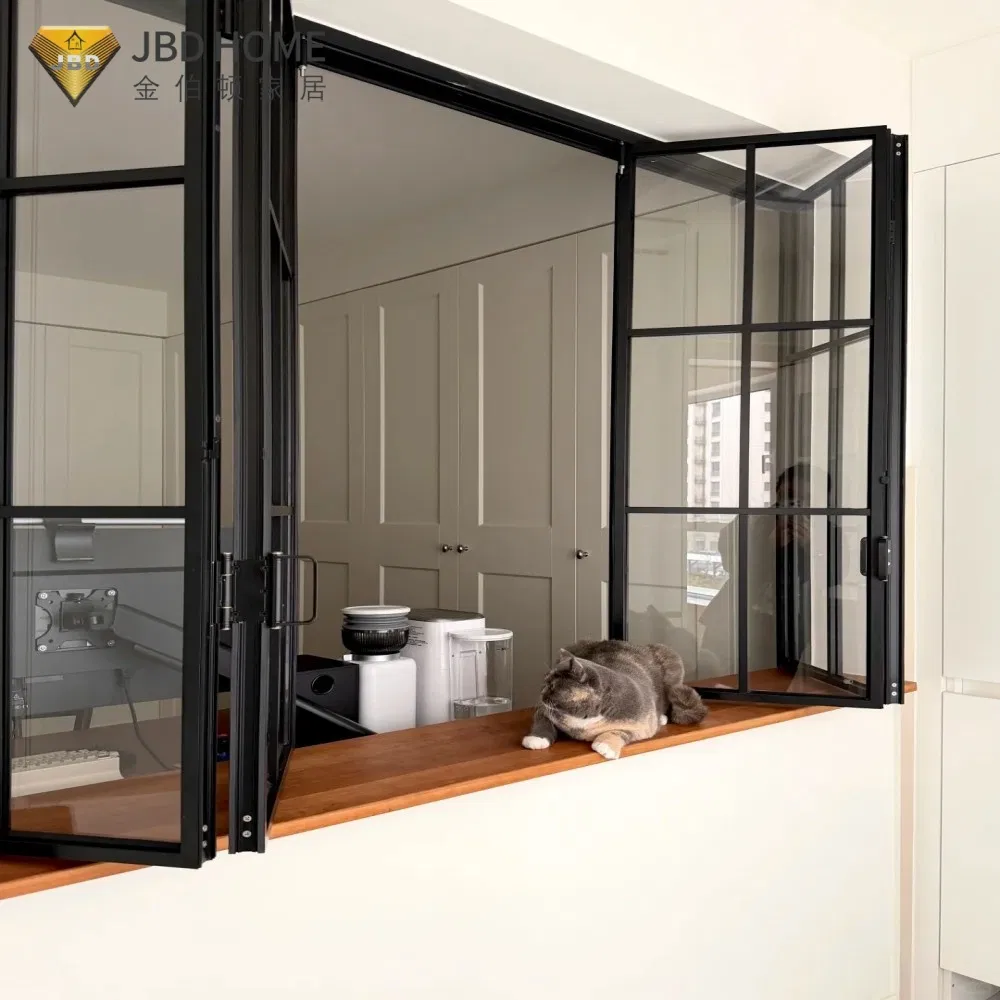

Modern Bi Fold Exterior Folding Glass Window Balcony Slim Frame System

Customization: Available
After-sales Service: Return and Replacement, Onsite Inspection, Online
Warranty: 5 Years

Product Description

📋 Basic Information
Material: Aluminum Alloy
Open Style: Folding
Style: Modern
Opening Pattern: Horizontal
Security Rating: A
Glass Type: Double Glazed Tempered Glass
Max Panel Size: Width: ≤800 mm; Height: ≤2700 mm
Origin: China
Folding Window Product Introduction
1. Maximized Ventilation & Panoramic Views Folding windows open fully like an accordion—eliminating visual barriers and allowing 100% airflow and unobstructed outdoor views, perfect for balconies, patios, and modern living spaces.
2. Premium Aluminum Frame with Thermal Break Made from durable 6063-T5 thermal-break aluminum alloy—resists corrosion, minimizes heat transfer, and ensures long-term performance in all climates.
3. Double or Triple Glazing for Superior Insulation Features energy-efficient double/triple insulated glass (with argon fill & low-E coating) to reduce noise by up to 35dB and cut heating/cooling costs year-round.
4. Smooth & Quiet Folding Operation Equipped with heavy-duty stainless steel hinges and multi-wheel rollers for effortless, silent folding—even with large panel sizes—tested for 20,000+ cycles.
5. Customizable Design & Easy Installation Available in multiple colors (black, white, wood grain), opening directions, and sizes; includes full hardware kit and fits standard or custom wall openings with minimal renovation.

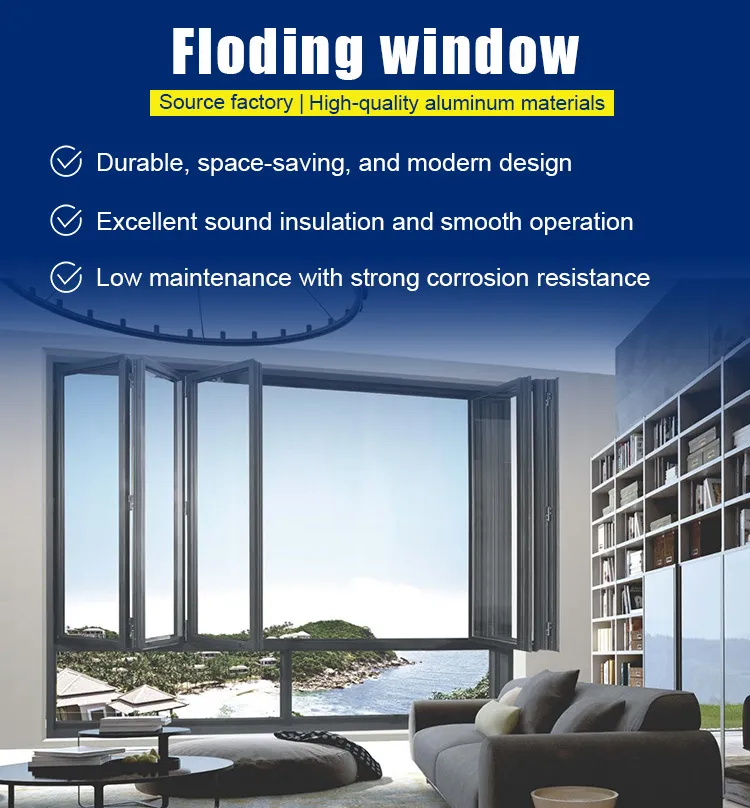

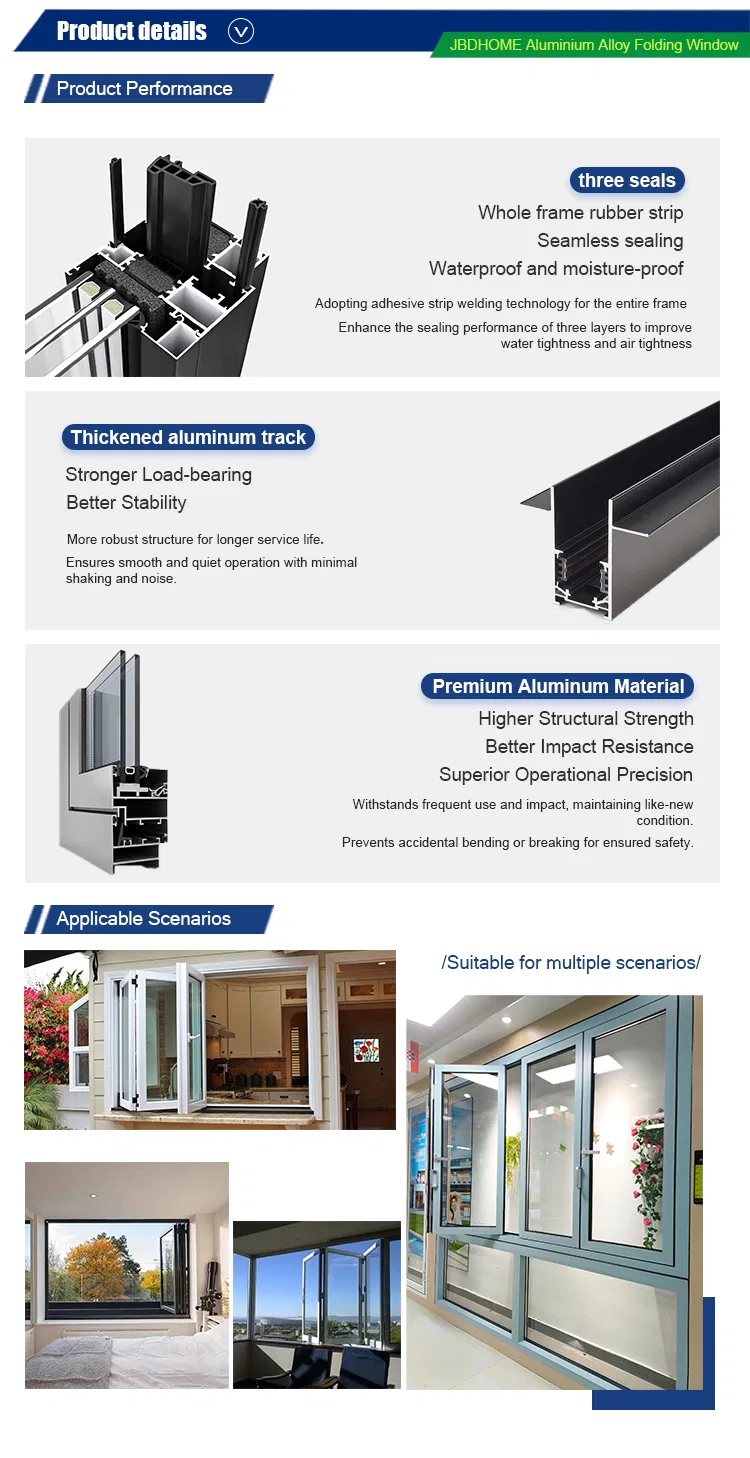

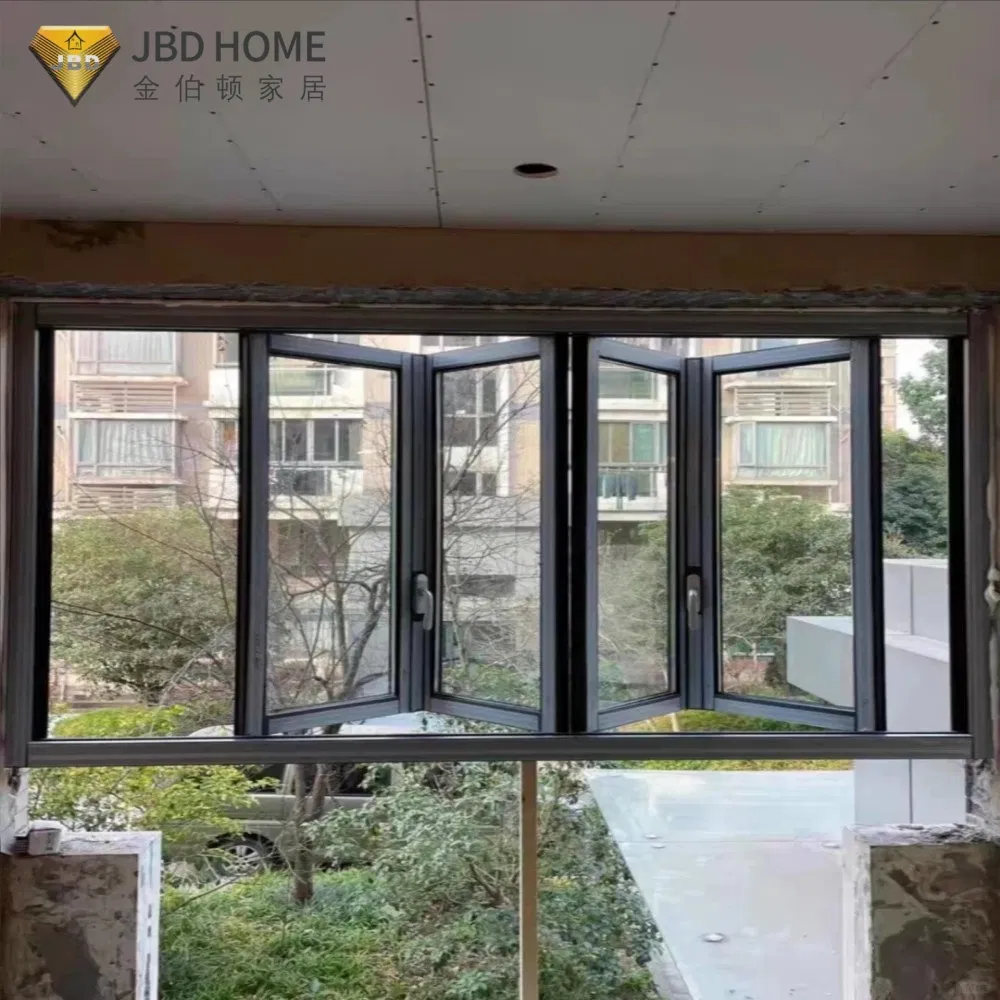

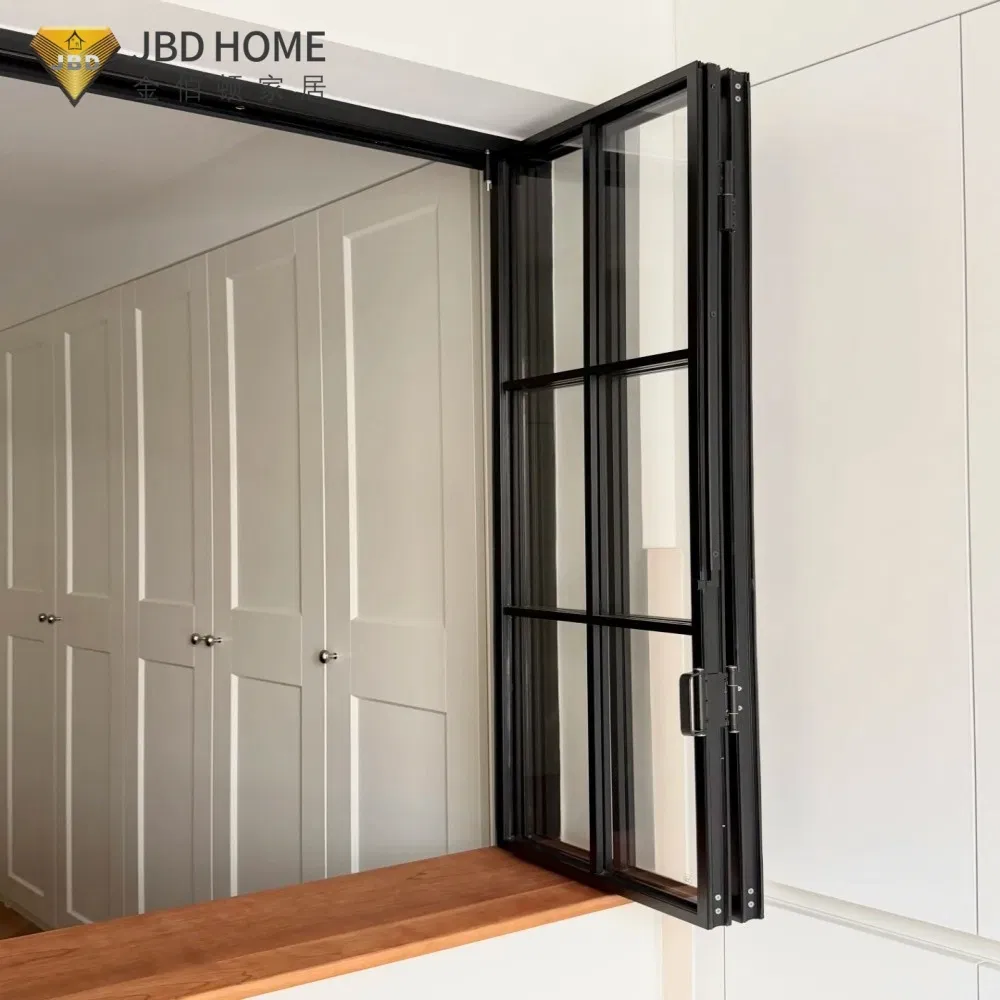

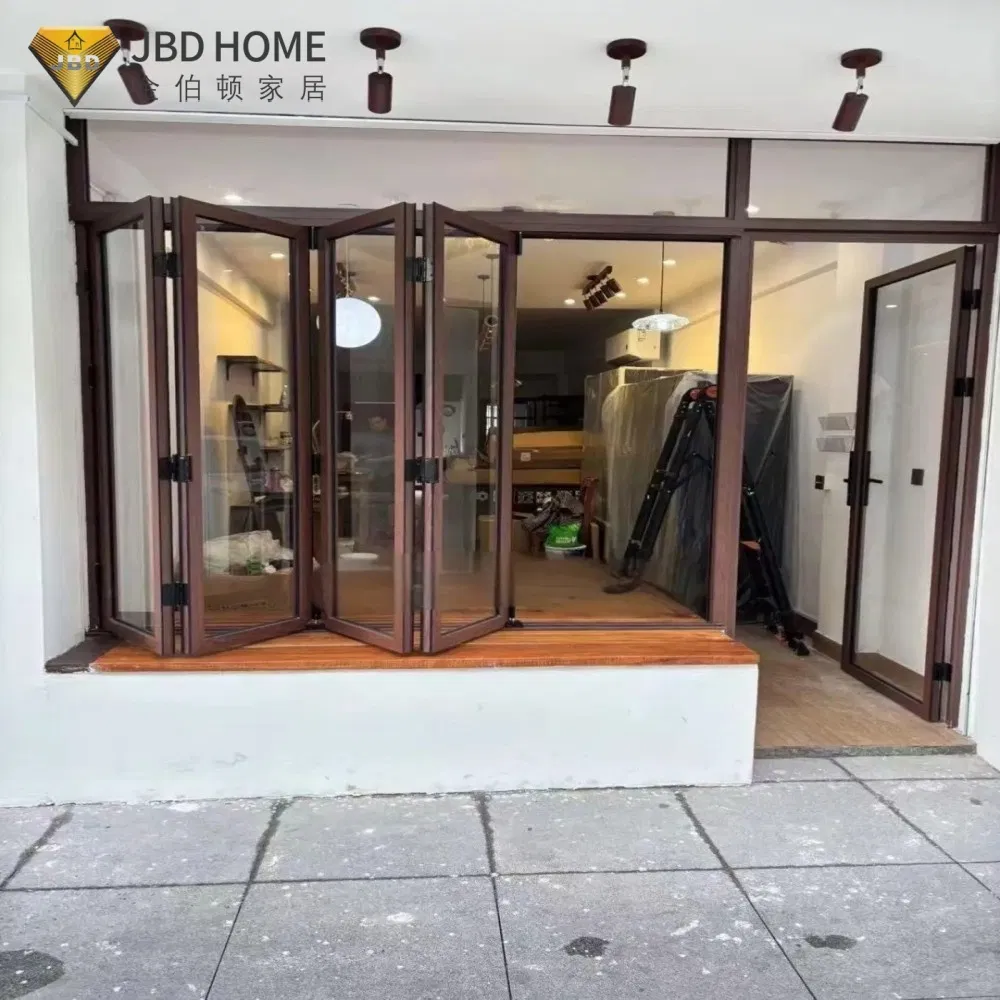

Modern Bi Fold Exterior Folding Glass Window Balcony Slim Frame System Modern Bi Fold Exterior Folding Glass Window System Detail Exterior Folding Glass Window Frame Detail
📊 Technical Specifications
Category Specification
Product NamePremium Aluminum Folding Window System for Indoor & Outdoor Use
Window TypeBi-Fold / Multi-Panel Folding (2–8 Panels, Customizable)
Frame Material6063-T5 Thermal Break Aluminum Alloy (1.4–2.0 mm)
Glass TypeDouble Glazed Tempered (5mm+12A+5mm); Optional: Low-E / Tinted
Surface FinishPowder Coating (RAL), Anodized, Wood Grain
HardwareHigh-Quality Folding Hinges & Rollers
Thermal Insulation≤ 1.8 W/(m²·K)
Sound Insulation≥ 32 dB
Wind ResistanceUp to 3000 Pa
Max Panel SizeWidth: 900mm, Height: 3000mm (Custom Available)
🖼️ Product Showcase
Premium Folding System Banner Folding Glass Window Application
Frequently Asked Questions
Q1: What are the main advantages of aluminum folding windows?
Aluminum folding windows offer 100% opening space, providing maximum ventilation and unobstructed panoramic views. They are space-saving, durable, and highly resistant to corrosion compared to other materials.
Q2: Can these windows help with energy efficiency?
Yes. Our windows use thermal break aluminum frames and double or triple glazed tempered glass. This significantly reduces heat transfer, helping to maintain indoor temperatures and lower energy costs.
Q3: Are the windows soundproof?
Our standard double glazing provides sound insulation of at least 32 dB. We also offer acoustic glass options that can increase sound reduction up to 40 dB for high-noise environments.
Q4: How do they perform in extreme weather conditions?
They are designed with EPDM weatherstripping and multi-chamber seals for excellent air and water tightness. They have been tested for wind load resistance up to 3000 Pa, making them suitable for coastal areas.
Q5: Can I customize the color and size of the window?
Absolutely. We offer a wide range of RAL powder coating colors, anodized finishes, and wood grain transfers. Panel sizes and the number of panels (from 2 up to 8) can be fully customized to fit your architectural needs.
Q6: Is the folding mechanism easy to operate?
Yes, our systems use heavy-duty stainless steel hinges and multi-wheel rollers, ensuring smooth and silent operation. The hardware is tested for over 20,000 opening and closing cycles.
